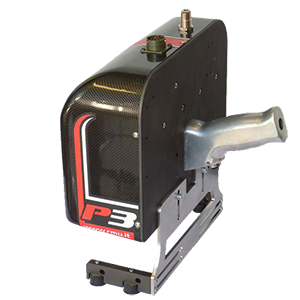

P3p Portable Marking

P3p - 180 x 35mm

Robust and handy, the microdot percussion marker model P3p is well suited for portable hand-held marking applications when 'taking the marker to the part' is required. Also capable of deep marking to allow coating of part surfaces afterwards. The fully adjustable bracket and feet allow for marking on varied part shapes.

Marking Specifications:

Working Area: 180 x 35mm
Stylus actuation available: MicroDot percussion
Pneumatic vibration
Speed of marking: up to 6 characters per second
MicroDot percussion variance capability: 14mm height difference
Max. Surface material hardness: up to 64 HRC
Weight of Unit: 4.5 Kg
