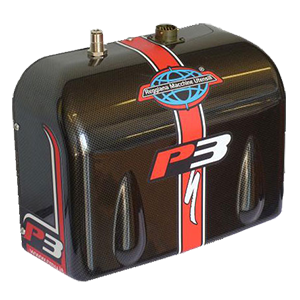

P3 Microdot Marking

P3 - 180 x 35mm

Compact and handy, the microdot percussion marker model P.3 is well suited for integration within automation production lines as well as fully portable hand-held marking unit for those 'take the marker to the part' cases when required. Also capable of deep marking to allow coating of part surfaces afterwards

Marking Specifications:

Working Area: 180 x 35mm
Stylus actuation available: MicroDot percussion
Pneumatic vibration
Speed of marking: up to 6 characters per second
MicroDot percussion variance capability: 14mm height difference
Max. Surface material hardness: up to 64 HRC
Weight of Unit: 4.5 Kg
