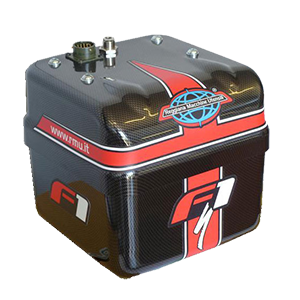

F1 Microdot Marking

F1 - 65 x 65mm

This very compact design with marking speeds of up to 8 characters per second makes the F1 suited for integration into automation lines. Its robust mechanical configuration makes it possible to obtain deep marking on surfaces to allow for painting or coating treatments afterward.

Marking Specifications:

Working Area: 65 x 65mm
Stylus actuation available: MicroDot percussion
Pneumatic vibration
Speed of marking: up to 8 characters per second
MicroDot percussion variance capability: 14mm height difference
Max. Surface material hardness: up to 64 HRC
Weight of Unit: 3 Kg
