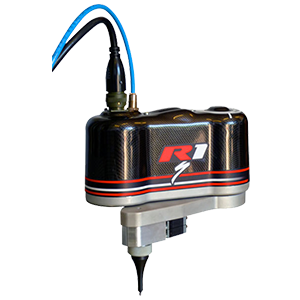

R1 Microdot Marking

R1 - 340 x 170mm

Designed as a multipurpose marking station, the R1 SCARA robot has 4 axis of movement for specialty marking applications in production lines where articulated reach is needed to access the part or when part shape is complex.

Marking Specifications:

Working Area: 340 x 170mm
Stylus actuation available: MicroDot percussion
Pneumatic vibration
Speed of marking: up to 6 characters per second
MicroDot percussion variance capability: 14mm height difference
Max. Surface material hardness: up to 64 HRC
Weight of Robotic Arm: 5.5 Kg
